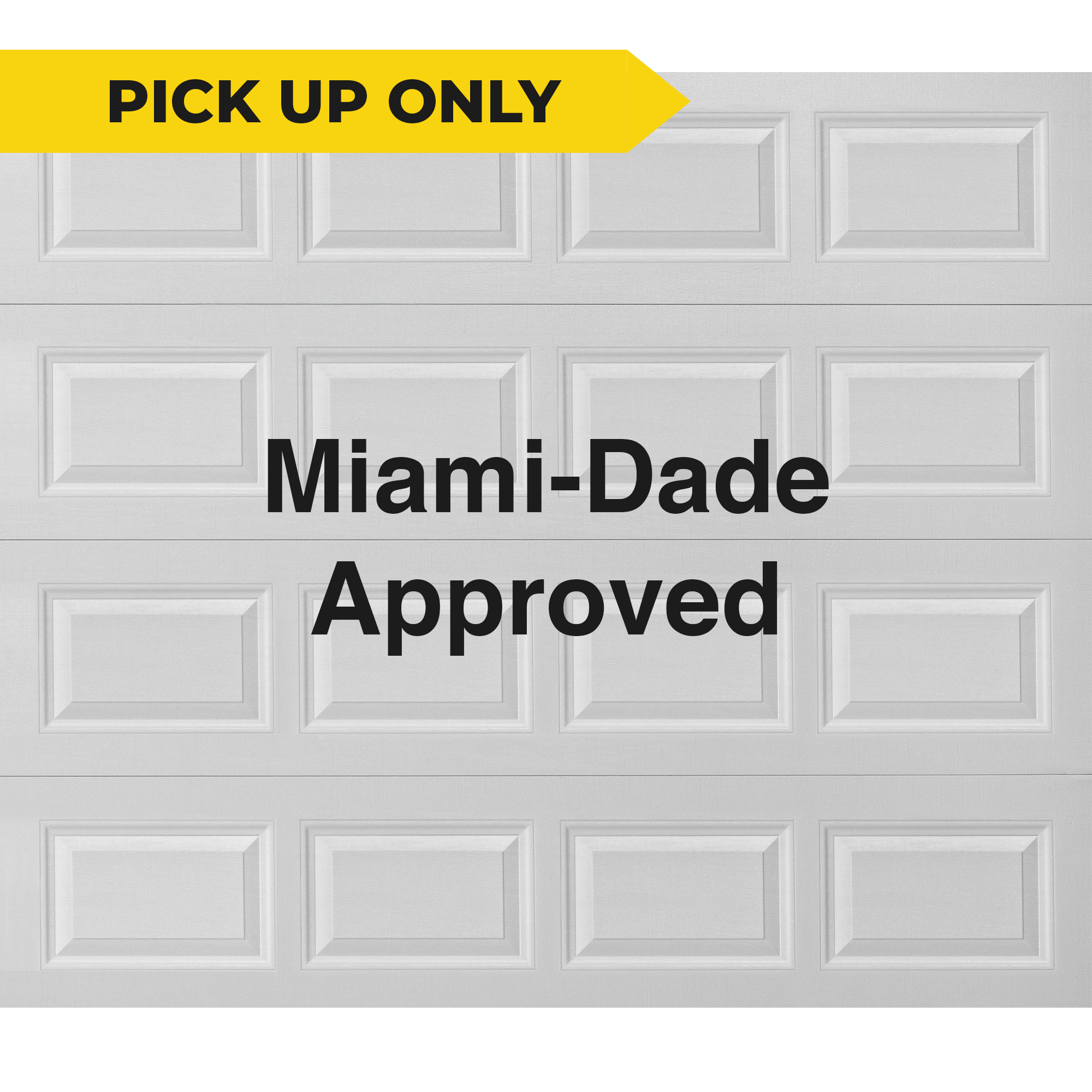

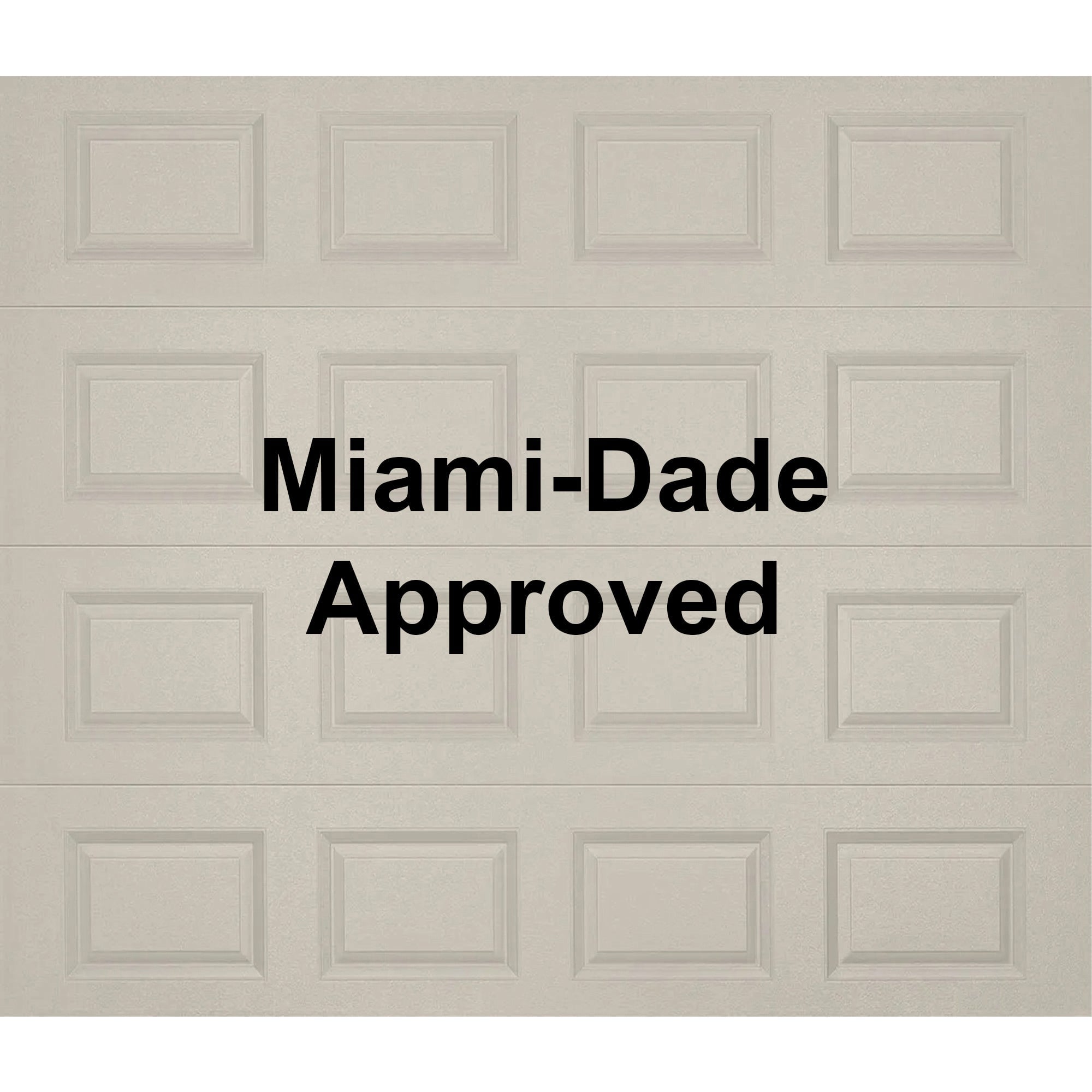

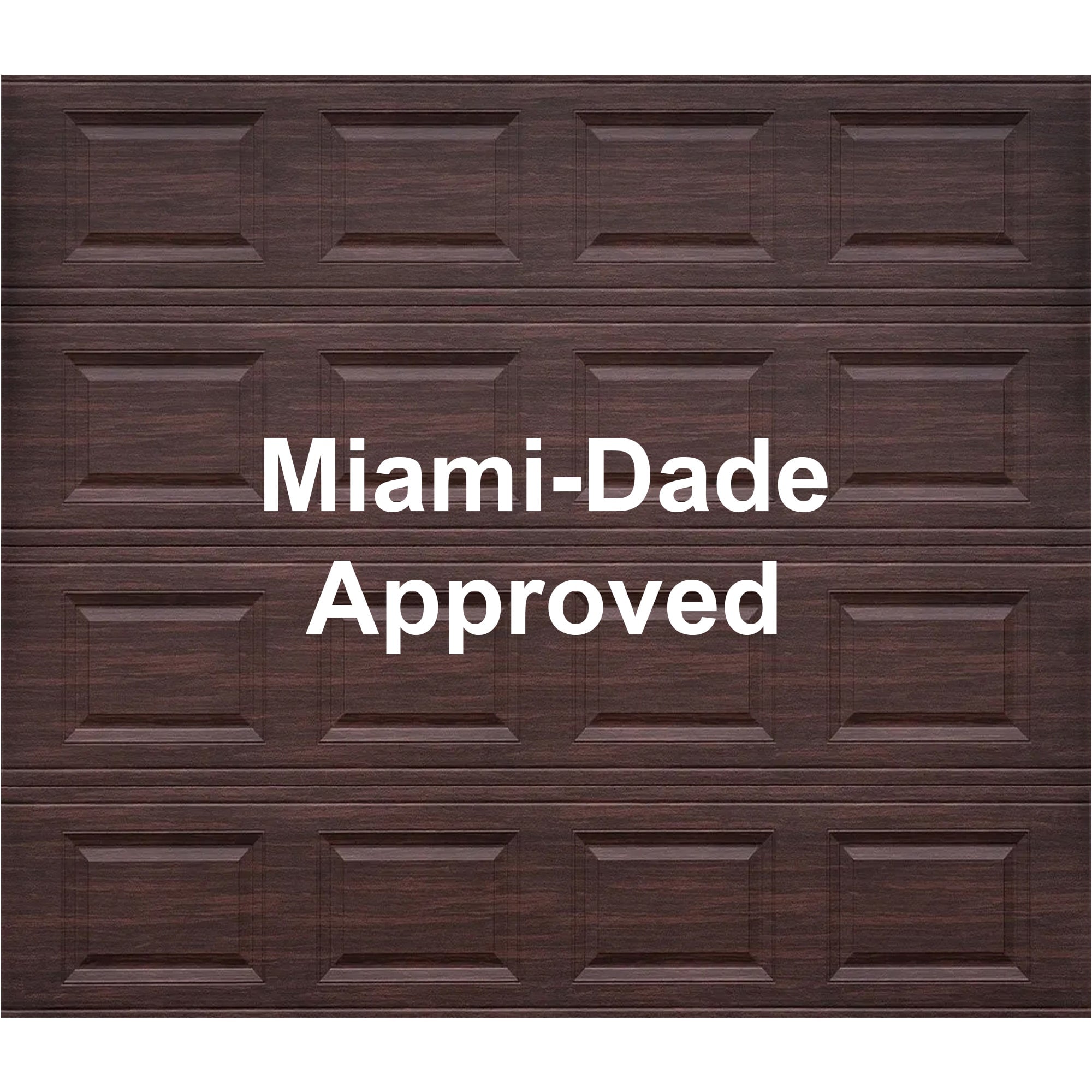

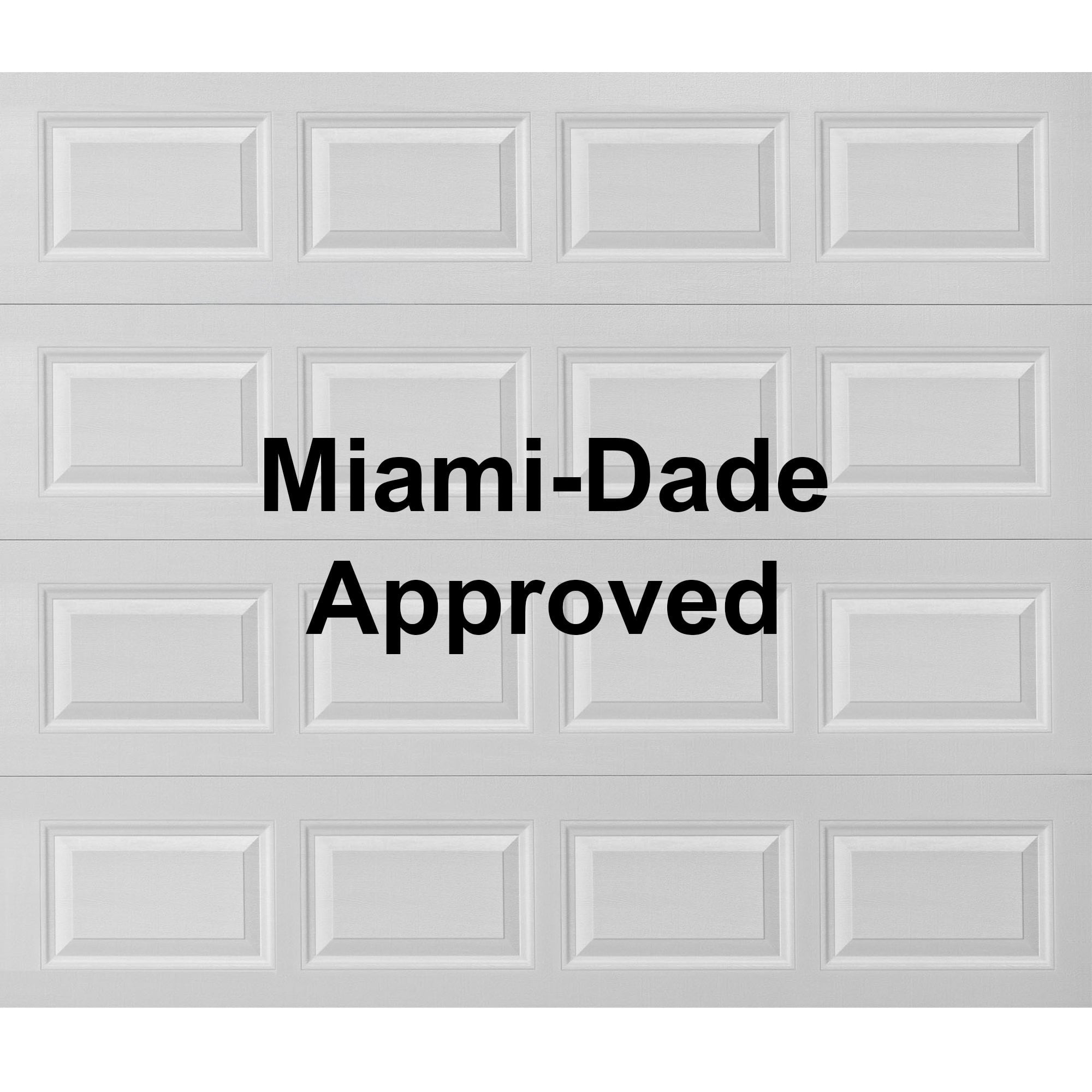

16′ x 7′ – Short Panel – 6″ Low Head Room

MIAMI-DADE APPROVED

COMPLETE DOOR;
16′-0″ X 7′-0″ 4S-8P R2480;
RAISED PANEL
10K TORSION 6″ LHRF 2 BRKT WOOD;
1″ TUBE;

(2) SLIDE LOCK;

8″ 11-BALL NYLON HS;

DES; 4- 3.5×5 E Strut;

2 – 2.25×2.75 E Strut (Add’l);

TRK BRKT LOOSE;
WINDLOAD: M-D +48.0/-52.0 PSF;

IMPACT RATED-HVHZ (23-0830.09);
