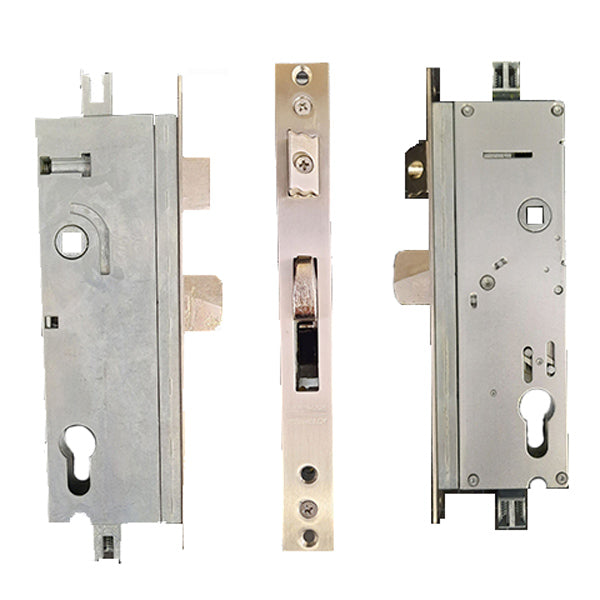

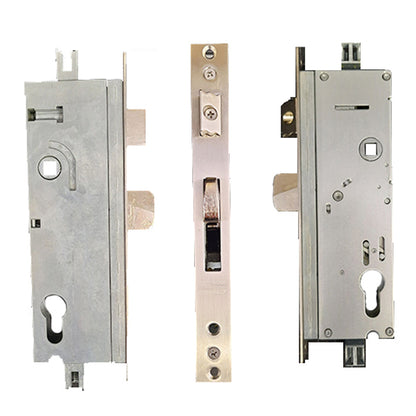

Interlock Assa Abloy LCL lever compression multipoint door lock with 50mm backset. Faceplate Length 8-1/2". Handle to Key Cylinder: 92mm. 1" deadbolt throw. 15/16" Faceplate Width. 4 point Interlock multipoint shootbolt door lock DL01-6540. Shootbolt rods not included.
Faceplate Length 8-1/2".
Handle to Key Cylinder: 92mm.
Deadbolt Throw. 1".
Faceplate Width: 15/16".
Mounting Hole Centers: 8".
