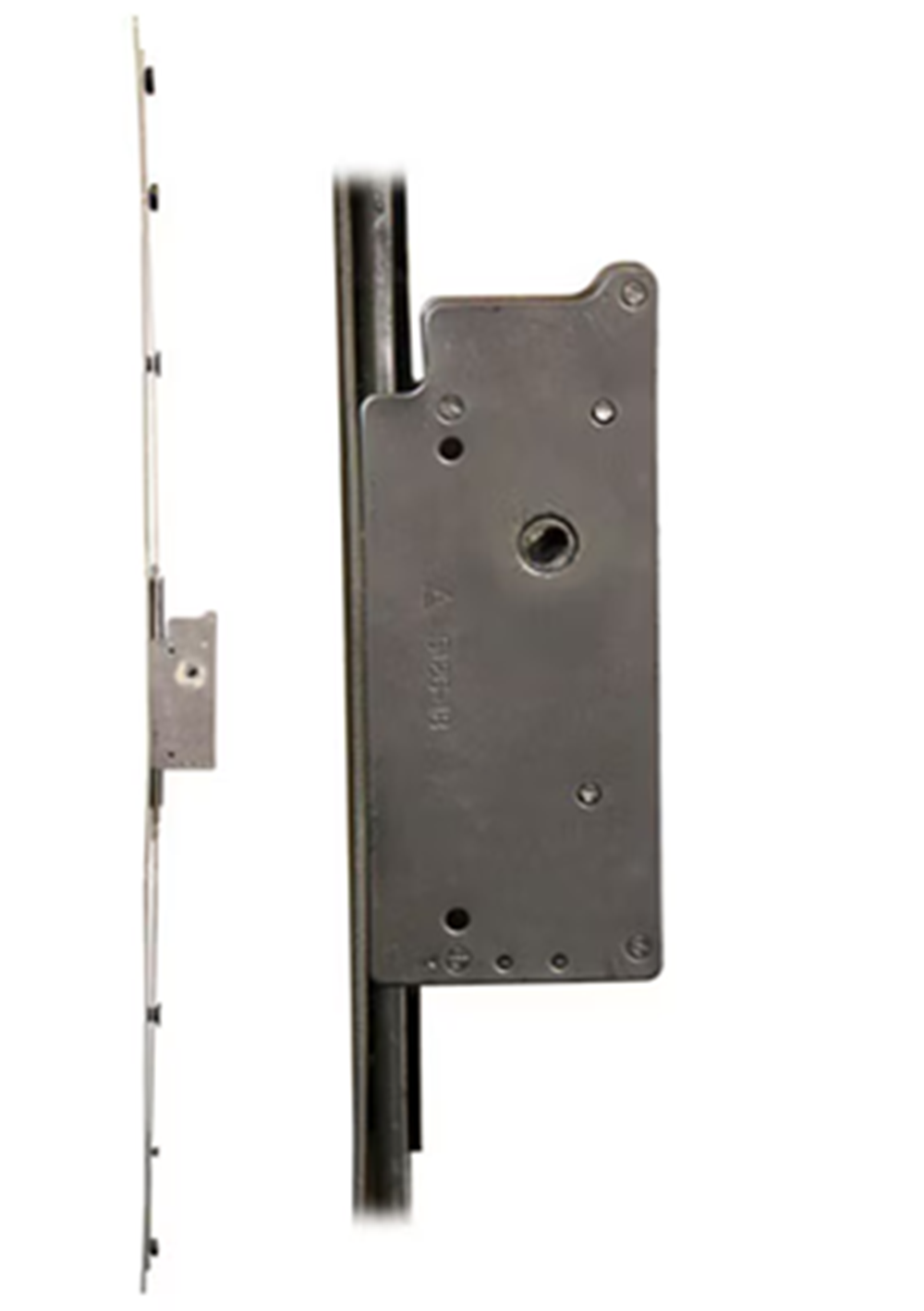

Stainless Steel Ashland Sliding Patio Door Multi Point Mortise Lock - DL-821

  • Sale
  • Regular price $198.57


  • SKU:DL-821

0%

Ashland XM-65 SENTINEL One-Piece Narrow slider multi point door lock. Backset: 1.38". Length: 40.93". Used on Jeld-Wen and Caradco sliding doors. Ashland Part: W5203-75S1. Stamped 5126-18 on lock. Used on doors made by Caradco, Jeldwen, Marvin and others.

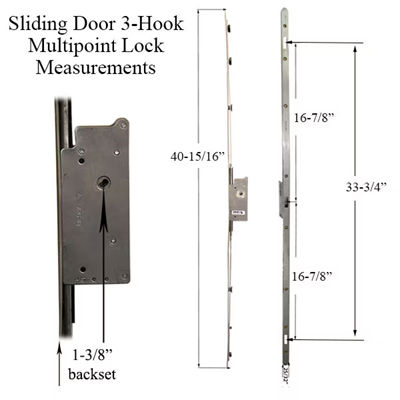

Overall Length: 40.93".
Center Latch to Lower Hook: 16-7/8".
Center Latch to Upper Hook: 16-7/8".

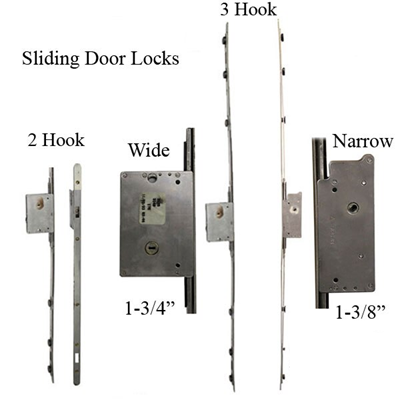

Sentinel Narrow Style multipoint sliding door lock with receptacles for 3 hooks.

Used by Caradco, Jeldwen and others.

Backset: 1-3/8 inch ( 35 mm)
Overall Length: 40-15/16 inch, Radius ends
Hooks: 3 - spaced 16-7/8 inch
Lock Body case: 2-1/8 x 4-7/8 inch
Lock case Markings: 5126-18

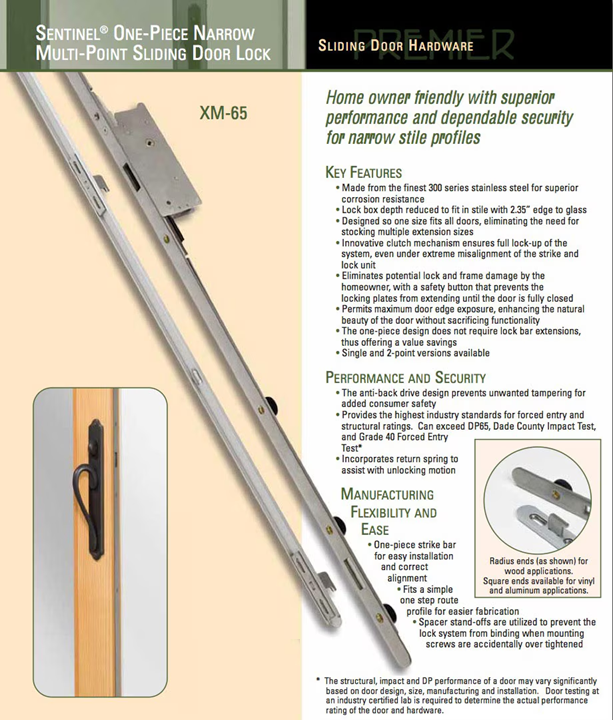

KEY FEATURES
- Made from the finest 300 series stainless steel for superior corrosion resistance
- Lock box depth reduced to fit in stile with 2.35” edge to glass - Designed so one size fits all doors, eliminating the need for stocking multiple extension sizes
- Innovative clutch mechanism ensures full lock-up of the system, even under extreme misalignment of the strike and lock unit
- Eliminates potential lock and frame damage by the homeowner, with a safety button that prevents the locking plates from extending until the door is fully closed
- Permits maximum door edge exposure, enhancing the natural beauty of the door without sacrificing functionality

***Special order, non-returnable. 2-3 Week delivery time.
